Plastic-Economical

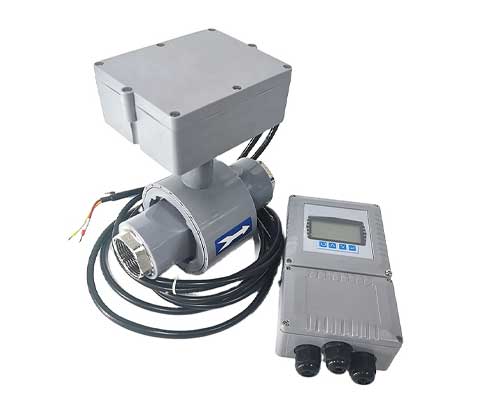

Electromagnetic Flow Meter

Plastic-Economical

  • Model No: ABMAG EC 350
  • Line Size: DN 15 to DN 50
  • Body Materials : Plastic PVC
  • Electrode: SS 316 / SS316L/ Hastelloy C / Ta /Ti.
  • Liner: PTFE / Neoprene /Soft Rubber /Hard Rubber/PFA
  • Connection: Threaded, BSP (M)
  • Transmitter: Remote mounted. (FT 200 RM)
  • Signal Output: 4-20 mA, Pulsed Output.
  • Power Supply: 230 V ac/ 110 V ac, 50 Hz/24 V dc.
